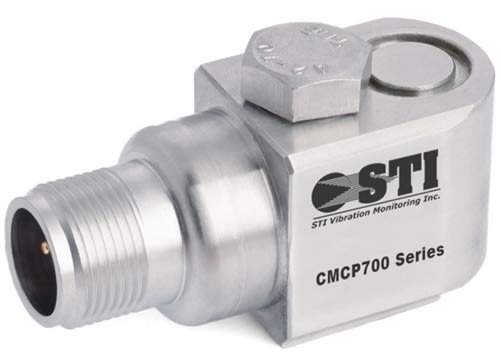

CMCP780A Compact, Side Exit

$
Choose your options:
Thread Size(required):
Connector:
Product Code: CMCP780A
    The CMCP780A Compact Side Exit Accelerometer is a 100 mV/g Low Profile, Compact Accelerometer and is the ideal accelerometer for use in small spaces. The CMCP780A is lightweight and can be use for magnet or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP780A is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series.

    Features:
    Sensitivity: 100 mV/g ±10%
    Frequency Response (±3dB): 0.8 Hz to 19 kHz (48 cpm to 1,140k cpm)
    Dynamic Range: ±80 g, peak
    Settling Time: 1 Seconds
    Mounting: 1/4"-28 UNF or M8x1.25 Captive Bolt
    Power Requirements: 18-30 VDC
    Temperature Range: -67 to +302°F (-55 to +150°C)
    Case Material: 316L Stainless Steel
    Connector: 2 Pin MIL-C-5015 or Integral Cable (over braided or PUR Jacketed)
    Approvals: CE Approved

    STI specializes in providing cost-effective solutions to traditional Rack Based Monitoring Systems. They have introduced single-channel transmitters and monitors to the market, reducing expenses associated with machine protection systems. This innovative approach focuses on single-channel monitoring systems, making them more accessible and affordable. With nearly four decades of experience, STI Vibration Monitoring continues to lead the industry with its commitment to quality and affordability. Best of all, products from STI Vibration Monitoring are proudly manufactured in the USA. Explore our full selection of compact-size MS connectors.


    CMCP780A DatasheetInstallation GuideManualSupport
