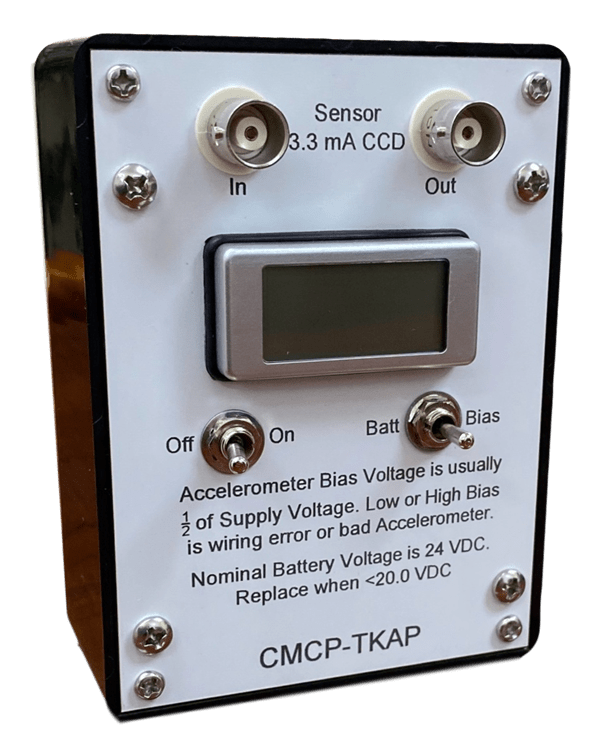

CMCP-TKAP Accelerometer Power

$
Product Code: CMCP-TKAP
Features
  • Powers one (1) Standard Accelerometer (IEPE*)
  • Standard BNC Connectors for Input and Output
  • BNC to Terminal Adapters Provided (2)
  • Battery Powered, Standard 9V Alkaline (3)
  • AC Coupled Output
  • 3.3 mA Constant Current Diode
  • 0.5” (12.5mm) LCD Display (Battery and Accelerometer Bias)
  • 125+ Hours Battery Life (When connected to Accelerometer)
  • Small and Lightweight
  • Molded Carry Case
  • Batteries Included
The CMCP-TKAP is used to power IEPE Accelerometers using a 3.3 mA Constant Current Diode. Both Battery Power and Accelerometer Bias can be checked using the LCD Displays two position momentary switch. As the LCD may add noise to the Accelerometer Signal the display is only powered and used when not taking data.
CMCP-TKAP Data Sheet
Input: Constant Current Accelerometer
Display: 0.5” (12.5 mm) LCD Display for Battery and Accelerometer Bias

Electrical
Power: Battery Powered, Standard 9V Alkaline (3)
Battery Life: 125+ Hours (when connected to Accelerometer)
Diode: 3.3 mA Constant Current Diode
Coupling: AC Coupled Output
Connection: Two BNC Sockets
Leads: Two Male BNC to Terminal Adapters

Mechanical
Dimension: 4.3 x 3.3 x 2.2 inches (110 x 82 x 55 mm)
Weight: 1.5 lbs. (0.68 kg) with hard case and accessories
