Typical Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.
Features
- Loop Powered
- Acceleration (g's) Output (10 Hz to 5.0 kHz)
- RMS or Peak Detection
- Top Entry, 2 Pin MS Connector
- Class 1 Division 2 Approved
- Class 1 Division 1 with Barrier
- Interfaces Directly to PLC/DCS Systems
- -13 to +248°F (-25 to +120°C) Temperature Range
- 1/4" x 28 UNF Mounting Stud Included

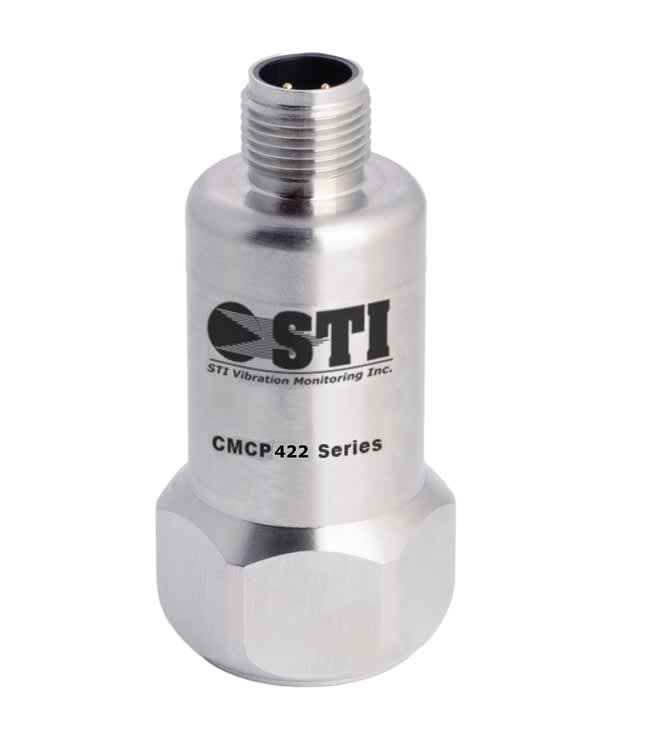

The CMCP422AT-C Series are loop powered 4-20mA output sensors which are capable of interfacing directly to an analog input card on a PLC or DCS system. The 4-20mA output is proportional to the full scale range in terms of g's Acceleration and are capable of transmitting signals over a long distance without signal loss. The M12 connector allows the sensor to work with a separate cable assembly such as the CMCP605M series cables.
