Typical Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.
Features

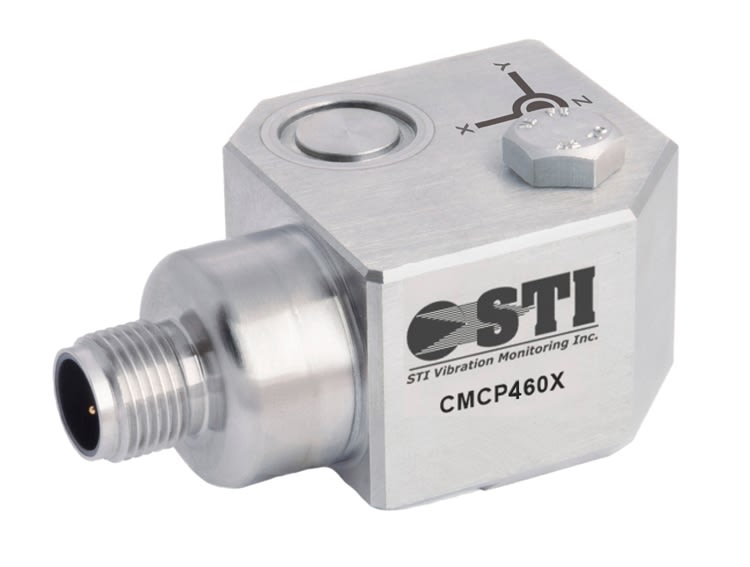

- Side Exit, Triaxial Velocity Sensor
- Three 4-20 mA Outputs (X, Y and Z)
- Interfaces Directly to Control Systems (PLC’s)
- 248°F (120°C) Max Temperature Range
- ISO Standard Frequency Range (10-1.0 kHz)
- 1 Second Settling Time
- Stainless Steel Case
- 8 Pin M12 Eurofast Connector
- ¼”-28 UNF or M8x1.25 Captive Mounting Bolt
- Sealed to IP68
