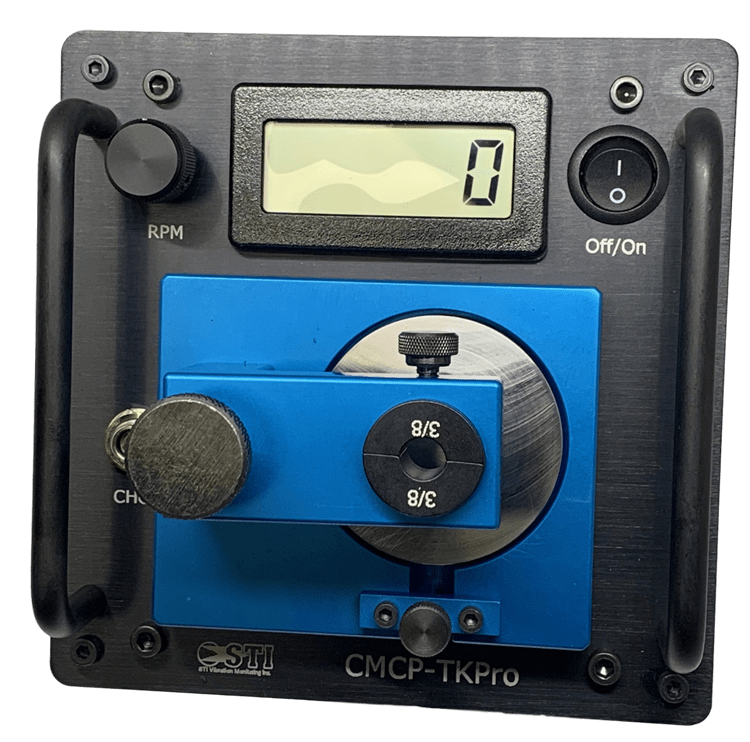

CMCP-TKPro Vibration Test Kit

Choose your options:

English or Metric EU

English or Metric EU(required):

[-E] English

[-M] Metric

CMCP-TKPro Kit Options

CMCP-TKPro Kit Options(required):

[-000] Without CMCP610 Calibrator

[-Kit] With CMCP610 Calibrator

Product Code: CMCP-TKPro

Qty:

Features

Battery Powered
Li-Ion 3.2 Ah Battery
82 mA Draw @ 3600 RPM
Smart Charger
0-15 mils Dynamic Range
Precision Dial Micrometer
Variable Speed to 11,000 RPM
Tachometer Display
English and Metric Versions
Weatherproof Travel Case
Plastic Feeler Gauges for Quick Gap

The CMCP-TKPro Vibration Test Kit is used to provide a calibrated mechanical vibration using a variable speed Wobble Plate. A Precision Dial Indicator is used to position the Swing Arm to the desired amplitude. The Dial Indicator is then replaced with a Proximity Probe. Both the Proximity Probe System and Monitoring System can be verified by this method. The CMCP-TKPro’s Wobble plate is 4140 Steel which is the standard for all Proximity Systems. The CMCP-TKPro is battery powered using a long life Li-Ion battery, Smart Charger is included. The CMCP-TKPro also runs on AC power using the Smart Charger provided.

CMCP-TK-Pro Vibration Test Kit Data Sheet

Specifications
Battery:
22.2 VDC Li-Ion 3.2 Ah
PCM and Polyswitch Protected
82 mA Draw @ 3600 RPM
101 mA Draw at 7000 RPM
Charger:
110-240 VAC, 50-60 Hz 1.2 Amp w/LEDs
Red = AC Connected, Charging
Green = AC Connected, Battery Not Connected/Charged
Vibration Amplitude Range:
0 to 15 mils (0 to 381 um)
Speed:
0-11,000 RPM (0-183 Hz)
RPM Display:
Backlit LCD
Digits 0.6” High (15.2 mm)
Dimensions:
TKPro: 6.25” x 6.25” x 5.5” High (159 x 159 x 140 mm)
Travel Case: 14.2” x 11.4” x 6.5” High (361 x 290 x 165 mm)
Total Weight:
8 pounds (3.63 kilos)
Probe Adapters:
¼”, 3/8”, M8, M10
