Features
- Accelerometer Mounting Pad
- 0 to 100°C (32 to 212°F)
- 10 mV/°C Sensitivity
- 0.5°C Accuracy
- Blue/Common, Black/Signal, Brown/Power)
- 4.0 to 30.0 VDC Power
- 3-Pin M8 Male Connector
- 1” D x 0.40 H
- Through Hole for ¼”-28 Stud or Bolt
- 16 RMS Finish One Side

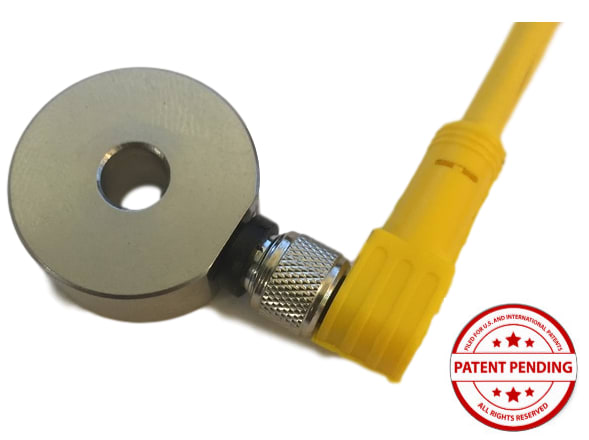

The CMCP200ET Electronic Temperature Mounting Pads are designed to make it easy to add a Temperature measurement to your existing Accelerometer installation. They can be used for both new installations and retrofit. They have a center clearance hole for ¼”x28 UNF so that the cable exit can be in the best possible location. For standalone temperature monitoring prepare the surface area as you would for an accelerometer and epoxy or bolt pad to the bearing surface. For accelerometer installation use a 1” long ¼”x28 UNF Stud and the Accelerometer will act as the nut.
The CMCP200ET Mounting Pad with Electronic Temperature combines versatility and functionality for both new installations and retrofitting projects. Designed with a center clearance hole for ¼”x28 UNF, this mounting pad allows for optimal cable exit positioning, ensuring a clean and efficient setup. Ideal for temperature monitoring in various applications, the CMCP200ET provides reliable and accurate readings, supporting your predictive maintenance initiatives. Its rugged construction guarantees durability, making it suitable for demanding industrial environments. This mounting pad simplifies installation while enhancing the performance of your temperature monitoring systems. Whether you’re upgrading existing equipment or implementing new solutions, the CMCP200ET is your go-to choice for reliable temperature measurement. Trust STI Vibration Monitoring to provide quality products that enhance operational efficiency and system reliability.
